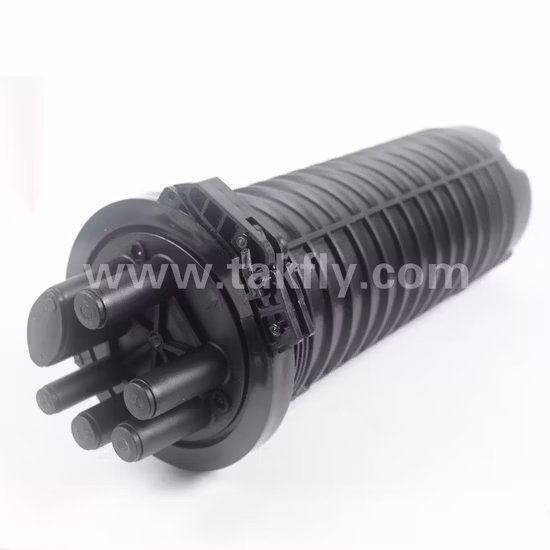

6 Ports Vertical Dome Type Fiber Optic Splice Closure

Basic Info.

Model NO.	TK-FOSC-V06
Waterproof Grade	IP68
Application	Duct, Buried, Overhead
Warranty	2 Years
Business Type	Manufacturer
Cores	24-240cores
Ports	6 Ports
Place of Origin	Shenzhen of China
Shape	Vertical Type
Transport Package	Carton
Specification	ISO, ROHS, CE
Trademark	TAKFLY/OEM/DF
Origin	Shenzhen, China
HS Code	8542900000
Production Capacity	5000/Week

Product Description

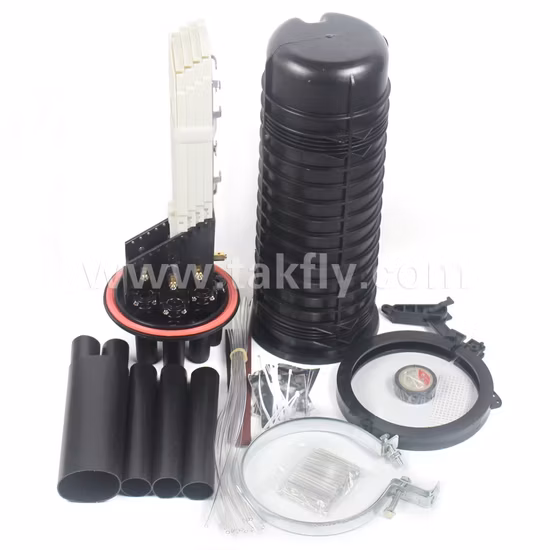

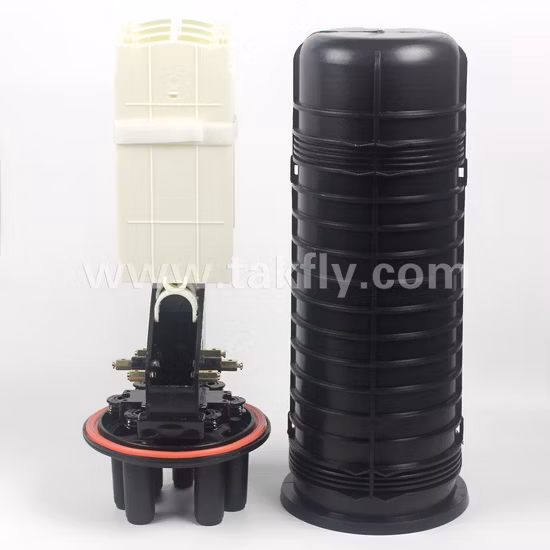

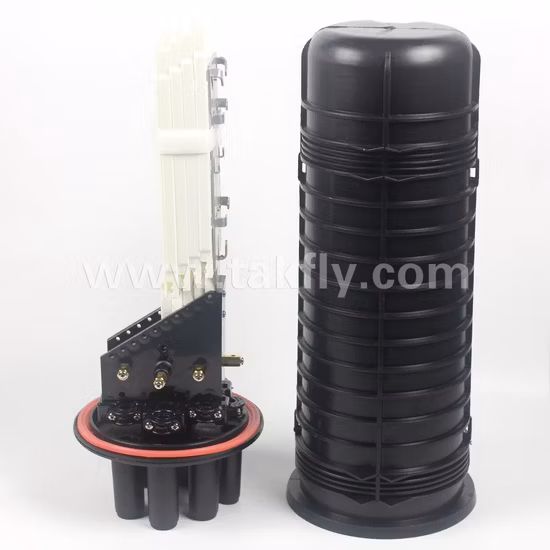

6 Ports Vertical Dome Type Fiber Optic Splice Closure
TK-FOSC-V06 provides with 6 fiber cable in-out round ports and the cable diameter is from 9-25. It is made of the high-quality PP+ ABS and with the mechanical sealing structure filled with the sealing material.Features:1.1 The closure can be used in duct, buried, overhead..etc1.2 High quality impact material.pp and internal is ABS1.3 Designed for ftth.1.4 Fiber storage with big basket1.5 Modular fiber management system1.6 Cable diameter range: 9~251.7 Sealing way of cables:Mechanical seaing by silicon rubber1.8 Quality warranty:2 years1.9 Life span:more than 25 years1.10 Ip rating is ip68SpecificationModel:TK-FOSC-V06 series of fiber closures

Splice tray			03A-tray			02A-tray
1 splice tray			24 cores			24 cores
2 splice trays			48 cores			48 cores
3 splice trays			72 cores			72 cores
4 splice trays			96 cores			96 cores
5 splice trays			120 cores			120 cores
6 splice trays			144 cores			144 cores
7 splice trays			168 cores			168 cores
8 splice trays			192 cores			192 cores
9 splice trays			216 cores			216 cores
10 splice trays						240 cores
Dimension of the closure
Model	Port	Closure diameter Max(mm)		Length (mm)	Round Diameter(mm)		Oval Port(min)(mm)
V06	6	160		540	8-23		8-26

Remark: on one oval port,it can be suit for 2 cables,which diameter can be from 8 mm to 26mm.The ovalport can be used for inline cutting. (2)Environment Temperature:-40ºC~+60ºC Atmospheric Pressure:70kPa~106kPa (3)Lifespan:more than 25 years (4).Material:Higt strength polypropylene(PP)and ABS,which can assure any items of physical performance is excellent.

Order information
Packing	Pack pcs	Size(mm)	Weight(kg)	mark
carton	6	500x600x730	25

6 Ports Vertical Dome Type Fiber Optic Splice Closure

Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable

Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping

Advantage
1.17 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice

Delivery
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB

Payment
Acceptable by T/T, West Union, PayPal and L/C according to your requirement

Shipping
1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.
